Modular Operation Theatre Equipment

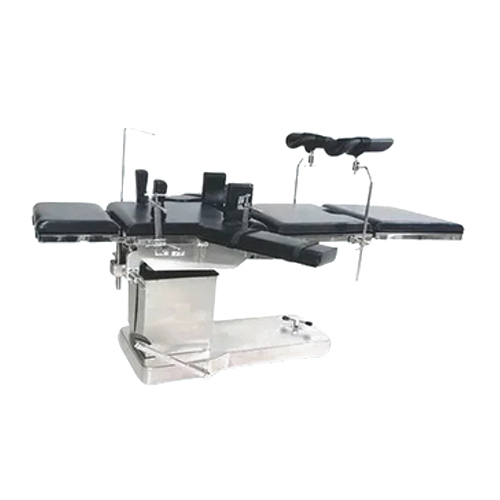

• Accuracy
• Positioning through precise hydraulic mechanism

• Application
• Operation Theatre, Hospital, Clinical Use

• Automation Grade
• Manual

• Color Code
• Black/Steel Grey

• Dimension (L*W*H)
• 1800 x 530 x 750-1000 mm

• Function
• Multi-functional surgical positioning

• Height
• Adjustable from 750 mm to 1000 mm

• Humidity Range
• Up to 90% RH non-condensing

• Material
• Stainless Steel & Mild Steel

• Phase
• Single Phase

• Power
• Manual Hydraulic, No electrical power required

• Power Source
• Hydraulic Manual

• Product Type
• Hydraulic Operation Table

• Properties
• Hydraulic height adjustment, corrosion resistant, lockable wheels

• Shape
• Rectangular

• Suitable For
• General Surgery, Gynaecology, Urology, Orthopaedic

• Temperature Range
• 10C to 40C

• Treatment Type
• Surgical Operations

• Use
• Patient positioning for surgical procedures

• Weight
• Approx. 130 kg

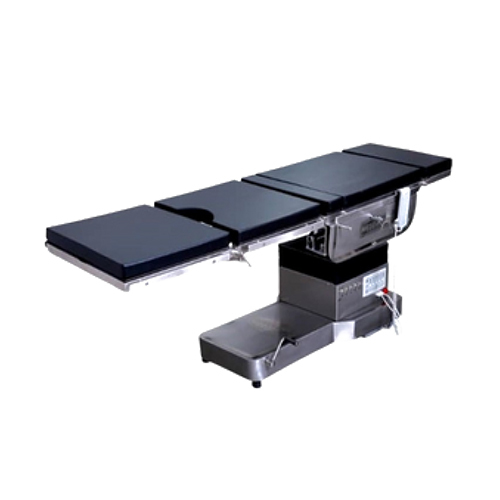

• Accuracy
• Manual Adjustment

• Application
• Operation Theatre

• Automation Grade
• Manual

• Color Code
• Black & Silver

• Dimension (L*W*H)
• 1800 mm 520 mm 760-1010 mm (Adjustable Height)

• Function
• Tilting, Height Adjustment, Lateral Tilt, Trendelenburg & Reverse Trendelenburg

• Height
• 760-1010 mm (Adjustable)

• Material
• Stainless Steel

• Phase
• Single Phase

• Power
• Manual Operation (No Electric Power Required)

• Power Source
• Manual

• Product Type
• Manual OT Table

• Properties
• Corrosion resistant, High load bearing, Removable mattress

• Shape
• Rectangular

• Suitable For
• General Surgery, Gynaecology, Urology, Orthopaedics

• Temperature Range
• Room Temperature

• Treatment Type
• Surgical Procedures

• Use
• Patient Positioning during Surgery

• Weight
• Approx. 120 kg

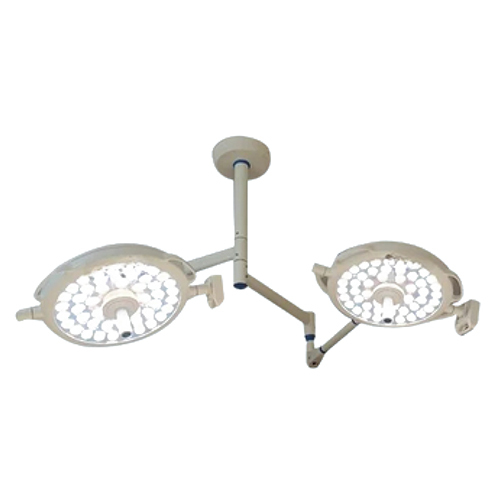

• Accuracy
• High Precision Focus Adjustment

• Application
• Operation Theatre Lighting

• Automation Grade
• Semi-Automatic

• Color Code
• White & Blue

• Dimension (L*W*H)
• 650 mm (Dome Diameter)

• Display
• LED Indicators on Controller

• Display Type
• Digital Intensity Display (on control panel)

• Frequency
• 50 Hz

• Function
• Illumination with Adjustable Focus

• Height
• Ceiling to Dome: 2100 mm (Adjustable)

• Humidity Range
• 10% - 95% RH

• Material
• Aluminium Body with Polycarbonate Dome

• Phase
• Single Phase

• Power
• 140 W (70 W per dome)

• Power Source
• Electric (AC Mains)

• Product Type
• Double Dome Prime OT Light

• Properties
• Shadowless, Adjustable Intensity, High Illumination

• Shape
• Double Dome Round

• Suitable For
• Major and Minor Surgeries

• Temperature Range
• 0C to 50C

• Treatment Type
• All Surgical & Medical Procedures

• Use
• Surgical and Examination Procedures

• Voltage
• 220V AC 10%

• Weight
• Approx. 18 kg per dome

• Application
• General Examination, Clinical Use

• Automation Grade
• Manual Height Adjustment

• Color Code
• White

• Dimension (L*W*H)
• Base Dia. 27 cm, Height Adjustable (110-185 cm)

• Frequency
• 50 Hz

• Function
• Examination Illumination

• Height
• Adjustable 110-185 cm

• Material
• Metal with ABS Housing

• Phase
• Single Phase

• Power
• 35 W

• Power Source
• Electric

• Product Type
• Examination Light

• Properties
• Shadow Less, Focus Adjustable, Mobile Stand

• Shape
• Round Head

• Suitable For
• Outpatient Department, Minor Procedures

• Treatment Type
• Medical Examination

• Use
• Hospital & Clinical Lighting

• Voltage
• 220V / 50 Hz

• Weight
• 10 Kg

• Accuracy
• High beam precision

• Application
• Operation Theatre Illumination

• Automation Grade
• Manual

• Color Code
• White/Blue

• Dimension (L*W*H)
• Approximated 600 mm Dome Diameter

• Display
• No digital display

• Frequency
• 50 Hz

• Function
• Illumination during surgeries

• Height
• Adjustable Suspension Arm

• Humidity Range
• Up to 95% RH

• Material
• Metal & Polycarbonate

• Phase
• Single Phase

• Power
• 60-100W

• Power Source
• Electric

• Product Type
• Single Dome OT Light

• Properties
• Shadowless, Bright Focus, Long Life

• Shape
• Round Dome

• Suitable For
• Hospitals, Clinics, Operation Theatres

• Temperature Range
• 10C to 40C operating

• Treatment Type
• General Surgical Procedures

• Use
• Surgical Lighting

• Voltage
• 220-240V AC

• Weight
• 18-25 kg (approx)

• Accuracy
• Optimized illumination with minimal shadow

• Application
• Operation Theatre Illumination

• Automation Grade
• Manual

• Color Code
• White

• Dimension (L*W*H)
• 580 mm (Dome Diameter)

• Frequency
• 50 Hz

• Function
• Provides shadowless and focused illumination

• Height
• Adjustable Suspension

• Humidity Range
• Up to 90% RH

• Material
• Metal and Polycarbonate

• Phase
• Single Phase

• Power
• 70 W

• Power Source
• Electric

• Product Type
• Single Dome OT Light

• Properties
• Shadowless, Energy-efficient, Sterilizable handle

• Shape
• Single Round Dome

• Suitable For
• Hospitals, Medical Centers, Surgical Rooms

• Temperature Range
• 0C to 40C

• Treatment Type
• Surgical Procedures

• Use
• Surgical lighting

• Voltage
• 220 V AC

• Weight
• Approx. 14 kg

• Application
• Operation Theatre Illumination

• Automation Grade
• Manual

• Color Code
• White/Blue

• Dimension (L*W*H)
• 1100 mm (Dome Diameter) each

• Display
• No digital display

• Frequency
• 50/60 Hz

• Function
• Operation Theatre Light

• Height
• Adjustable, Ceiling-mounted

• Humidity Range
• 10% - 90% RH

• Material
• Medical-grade Stainless Steel & Polycarbonate

• Phase
• Single Phase

• Power
• 160W (80W x 2 Domes)

• Power Source
• Electric

• Product Type
• Double Dome OT Light

• Properties
• Shadowless, Heat free, Sterilizable handle

• Shape
• Round double dome

• Suitable For
• Major and Minor Surgery

• Temperature Range
• 5C - 40C

• Treatment Type
• Surgical procedures

• Use
• Surgical Lighting

• Voltage
• 220V AC

• Weight
• Approx. 45 kg

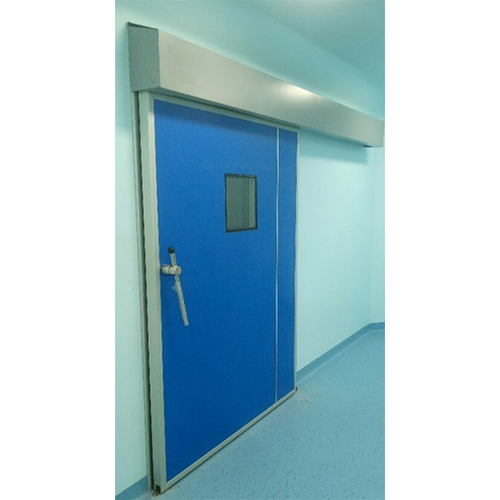

• Application
• Hospital Operation Theaters, Clean Rooms, ICUs

• Automation Grade
• Manual / Semi-Automatic / Automatic

• Color Code
• Blue RAL 5012 (Customizable)

• Dimension (L*W*H)
• 2100 x 1200 mm (Custom sizes available)

• Display
• No Digital Display

• Frequency
• 50/60 Hz

• Function
• Manual or Automatic Door Opening and Closing

• Height
• 2100 mm (Customizable)

• Humidity Range
• Up to 95% RH Non-Condensing

• Material
• Galvanized Steel with Antimicrobial Powder Coating

• Phase
• Single Phase

• Power
• Optional Electric Automation 100W

• Power Source
• Electric (For automated version)

• Product Type
• Modular Operation Theater Door (OT Door)

• Properties
• Soundproof, Hermetically Sealed, Hygienic, Antibacterial Surface

• Shape
• Rectangular

• Suitable For
• Healthcare Facilities, Modular OTs, Clinics

• Temperature Range
• 10C to 45C

• Treatment Type
• Powder Coated, Antibacterial Treated

• Use
• Access and Isolation for Sterile Medical Environments

• Voltage
• 220-240V AC

• Weight
• Approx. 60-80 kg (Depends on dimensions)

• Accuracy
• High reliability

• Application
• Motor Control, Industrial Automation

• Automation Grade
• Semi-Automatic

• Color Code
• Grey

• Dimension (L*W*H)
• 800 mm x 600 mm x 300 mm

• Display
• LED Indicators

• Display Type
• Analog/LED

• Frequency
• 50 Hz

• Function
• Manual & automatic operation

• Height
• 800 mm

• Humidity Range
• Up to 90% non-condensing

• Material
• Mild Steel

• Phase
• Three Phase

• Power
• 5 kW - 60 kW (Configured as per requirement)

• Power Source
• Electric

• Product Type
• Control Panel

• Properties
• Dust proof, Corrosion resistant, Shock proof

• Shape
• Rectangular

• Storage Capacity
• Multiple starter modules

• Suitable For
• Industrial applications, Pump control

• Temperature Range
• 0 C to 50 C

• Treatment Type
• Powder Coated

• Use
• Switching and controlling electrical motors

• Voltage
• 415 V AC

• Weight
• Approx. 40 kg

• Application
• Operation Theater, Laboratories, Hospitals

• Automation Grade
• Semi-Automatic

• Color Code
• Silver, Matte Finish

• Dimension (L*W*H)
• 2400 x 600 x 1200 mm

• Display
• No

• Frequency
• 50/60 Hz

• Function
• Hand Hygiene Preparation

• Height
• 1200 mm

• Material
• Stainless Steel (SS 304 Grade)

• Phase
• Single Phase

• Power
• 0.5 HP Motor (for automatic models)

• Power Source
• Electric and Manual

• Product Type
• 3 Cabin Scrub Station

• Properties
• Corrosion Resistant, Hygienic Construction

• Shape
• Rectangular

• Suitable For
• Medical, Surgical Environments

• Treatment Type
• Sterile Water Supply

• Use
• Hand Scrubbing and Cleaning

• Voltage
• 230 V AC

• Weight
• Approx. 140 kg

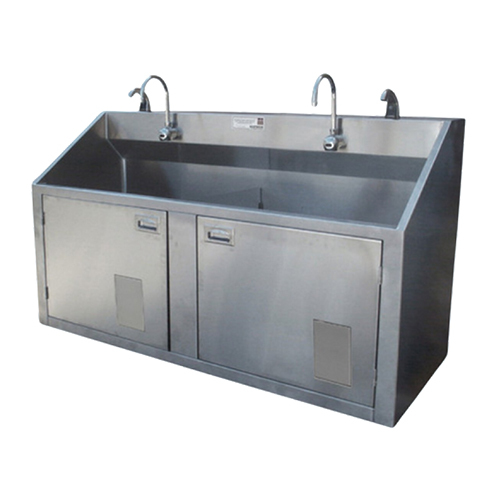

• Application
• Hospital Operating Theatres, Medical Facilities

• Automation Grade
• Semi Automatic

• Color Code
• Silver (Default Stainless Steel Finish)

• Dimension (L*W*H)
• 1200 x 600 x 1100 mm

• Display
• No Digital Display

• Frequency
• 50 Hz

• Function
• Hand Washing and Scrubbing

• Height
• 1100 mm

• Material
• Stainless Steel 304

• Phase
• Single Phase

• Power
• 0.5 HP

• Power Source
• Electric

• Product Type
• Scrub Station

• Properties
• Seamless Construction, Corrosion Resistant, Easy to Clean

• Shape
• Rectangular

• Suitable For
• 2 Users (Double Station)

• Treatment Type
• Surgical Hand Preparation

• Use
• Preoperative Scrubbing

• Voltage
• 230 V

• Weight
• Approx. 80 kg

• Accuracy
• 3% RH

• Application
• For transfer of material between clean rooms and different classified areas

• Automation Grade
• Semi-Automatic

• Color Code
• Silver

• Dimension (L*W*H)
• 600 mm x 600 mm x 600 mm

• Display
• LED

• Display Type
• Digital

• Frequency
• 50 Hz

• Function
• Safe transfer of materials, minimizes contaminant transfer

• Height
• 600 mm

• Humidity Range
• 60% RH

• Material
• Stainless Steel 304

• Phase
• Single Phase

• Power
• 80 W

• Power Source
• Electric

• Product Type
• Dynamic Pass Box

• Properties
• Double door with electromagnetic interlocking, UV lamp, and fluorescent lamp

• Shape
• Rectangular

• Storage Capacity
• One material batch at a time

• Suitable For
• Pharmaceutical, Laboratories, Hospitals, Research Facilities

• Temperature Range
• 15C to 35C

• Treatment Type
• UV Germicidal Treatment

• Use
• Prevents airborne cross-contamination during material transfer

• Voltage
• 230 V AC

• Weight
• Approx. 55 kg

• Accuracy
• 2% for temperature and humidity controls

• Application
• Hospital / Medical Surgical Procedures

• Automation Grade
• Semi-automatic / Automatic

• Color Code
• White, Light Blue, Green (customized)

• Dimension (L*W*H)
• Customizable (Standard: 20ft x 20ft x 10ft)

• Display
• Digital / Touch Panel (optional)

• Display Type
• LED / Digital

• Frequency
• 50-60 Hz

• Function
• Provides sterile and safe surgical environment

• Height
• 3000 mm (customizable)

• Humidity Range
• 40%-60%

• Material
• Stainless Steel / PUF Sandwich Panels / GI Panels

• Phase
• Single / Three Phase

• Power
• 4 kW (typical)

• Power Source
• Electric

• Product Type
• Modular Operation Theatre

• Properties
• airtight modular wall system, antibacterial, fire-resistant, seamless finish

• Shape
• Rectangular

• Storage Capacity
• Customizable - dedicated space for medical storage and equipment

• Suitable For
• Major and minor surgical procedures

• Temperature Range
• 18C to 25C

• Treatment Type
• All surgical treatments

• Use
• Supports surgical and medical operations in a controlled sterile environment

• Voltage
• 220-240V AC

• Weight
• As per design (typically 2000-5000 kg)

• Application
• Operation Theatres, Hospitals

• Automation Grade
• Manual Installation

• Color Code
• Blue 412, Green 011, Grey 628

• Dimension (L*W*H)
• 600 mm x 600 mm x 2 mm

• Function
• Electrostatic Discharge (ESD) Protection

• Height
• 2 mm thickness

• Humidity Range
• Up to 85% RH

• Material
• Antistatic Vinyl

• Phase
• Single Phase

• Product Type
• OT Flooring

• Properties
• Antibacterial, Antistatic, Fire Retardant

• Shape
• Square Tiles

• Suitable For
• Healthcare Environments

• Temperature Range
• 10C to 50C

• Treatment Type
• Antimicrobial Surface Treatment

• Use
• Medical Flooring, Clean Rooms

• Weight
• 2.3 kg/m2
