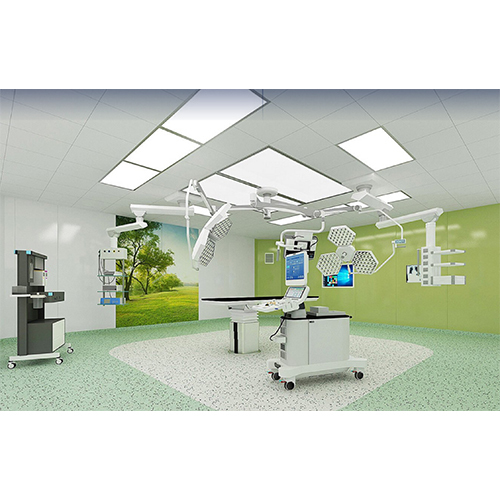

Modular Operation Theatre

Get a Price/Quote

MOQ : 1 Square Feet

Modular Operation Theatre Specification

Temperature Range
18C to 25C

Automation Grade
Semi-automatic / Automatic

Frequency
50-60 Hz

Product Type
Modular Operation Theatre

Application
Hospital / Medical Surgical Procedures

Dimension (L*W*H)
Customizable (Standard: 20ft x 20ft x 10ft)

Color Code
White, Light Blue, Green (customized)

Suitable For
Major and minor surgical procedures

Treatment Type
All surgical treatments

Properties
airtight modular wall system, antibacterial, fire-resistant, seamless finish

Humidity Range
40%-60%

Weight
As per design (typically 2000-5000 kg)

Shape
Rectangular

Accuracy
2% for temperature and humidity controls

Display Type
LED / Digital

Power
4 kW (typical)

Height
3000 mm (customizable)

Storage Capacity
Customizable - dedicated space for medical storage and equipment

Function
Provides sterile and safe surgical environment

Use
Supports surgical and medical operations in a controlled sterile environment

Phase
Single / Three Phase

Material
Stainless Steel / PUF Sandwich Panels / GI Panels

Display
Digital / Touch Panel (optional)

Voltage
220-240V AC

Power Source
Electric

Laminar Air Flow Unit
High-efficiency (HEPA filtered, 99.97% @ 0.3 micron)

Fire Safety
Fire-rated wall and door assemblies

Sterilization
Integrated UV and air sterilizer system

Air Changes per Hour
Min. 25 air changes/hour

Ceiling
Non-particle releasing, smooth finish

Control Panel
Microprocessor-based control panel

Accessories
X-ray view box, Surgeon Control Panel, Clock, Medical Pendants

Medical Gas Provisions
Terminal outlets for Oxygen, Vacuum, Medical Air, Nitrous Oxide

Flooring
Antistatic & Conductive Vinyl Flooring

Wall Panel Thickness
50 mm / 80 mm

Noise Level
Below 65 dB(A)

Compliance
NABH, ISO 14644, CE standards

Exhaust System
Exhaust blower with terminal HEPA filter

Lighting

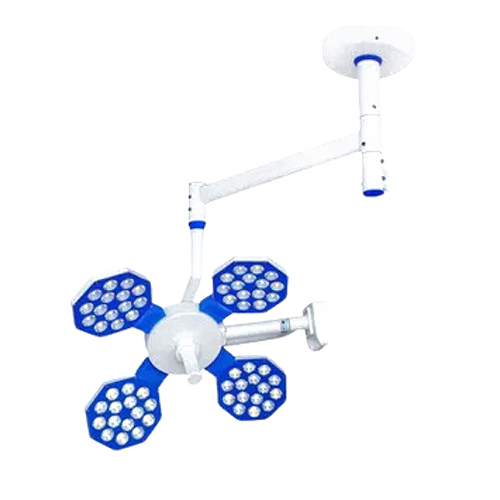

Shadowless LED OT Lights, 1,20,000 lux

Door Type
Hermetically sealed sliding / automatic doors

Observation Window
Double-glazed vision panels

Modular Operation Theatre Trade Information

Minimum Order Quantity
1 Square Feet

Supply Ability
100 Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Modular Operation Theatre

Grab the opportunity to explore an opulent realm of surgical precision with our Modular Operation Theatre-where functionality meets eminent innovation. Designed with a gilt-edged selection of materials like stainless steel and PUF sandwich panels, its airtight, antibacterial modular wall system creates an ephemeral, seamless environment for critical medical procedures. Hermetically sealed sliding doors and shadowless LED OT lights (1,20,000 lux) ensure clinical brilliance. High-efficiency HEPA filtration, advanced exhaust systems, and microprocessor-based control panels establish a controlled, safe, and sophisticated zone-ideal for major and minor surgeries in hospitals across India.

Distinguished Features and Applications of Our Modular Operation Theatre

Our operation theatre stands apart due to its exceptional antistatic vinyl flooring, high air exchange rates, and integrated sterilization systems. Customizable for dimension and color, it supports diverse surgical environments and accommodates all treatment types. Its eminent performance appeals to eminent hospitals and medical centers, ensuring precise, sterile procedures. Used by renowned surgeons, this system also supports various medical applications, from routine surgeries to complex interventions-offering flexibility, reliability, and operational brilliance every time.

FOB Port, Certifications, and Sample Policy-Opulence in Market Value Delivered

Our modular operation theatres can be swiftly shipped from major Indian ports with express shipping and reliable exchange policies. Certified to NABH, ISO 14644, and CE standards, our solution commands gilt-edged market value and trust. We offer customizable sample solutions to enable informed procurement decisions, enhancing your facility's competitive stature. Built to excel, our product's certifications and streamlined shipping policies assure you receive only the finest equipment with optimal compliance and support.

FAQ's of Modular Operation Theatre:

Q: How does the Modular Operation Theatre maintain a controlled sterile environment?

A: The theatre uses advanced HEPA filters (99.97% efficiency at 0.3 micron), a minimum of 25 air changes per hour, integrated UV and air sterilizers, and hermetically sealed doors to ensure consistent, contamination-free conditions for all surgical operations.

Q: What types of surgeries can be performed in this Modular Operation Theatre?

A: It is designed for both major and minor surgical procedures, providing a safe, flexible, and sterile environment that supports a wide array of medical and surgical treatments in hospitals and healthcare centers.

Q: When is regular maintenance of the Modular Operation Theatre recommended?

A: Regular maintenance is recommended semi-annually or as specified by operational usage intensity and local regulations, ensuring all systems, especially air filtration and sterilization units, are functioning at their highest efficacy.

Q: Where can these Modular Operation Theatres be installed?

A: These theatres are suitable for installation in hospitals, specialty clinics, and medical research facilities and can be customized to fit new buildings or be retrofitted into existing healthcare infrastructures.

Q: What are the benefits of using a hermetically sealed door in the theatre?

A: Hermetically sealed sliding or automatic doors prevent air leakage, maintain pressure stability, and hinder infection spread, thereby preserving the sterile atmosphere essential for surgical success.

Q: How do the control and display systems enhance user experience?

A: With a microprocessor-based control panel and optional digital or touch interfaces, users can easily monitor and adjust parameters such as temperature, humidity, lighting, and air quality, ensuring optimal conditions with precision and convenience.
